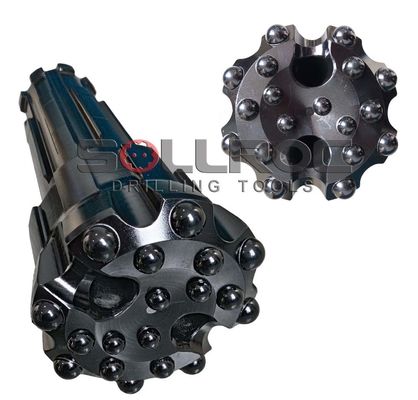

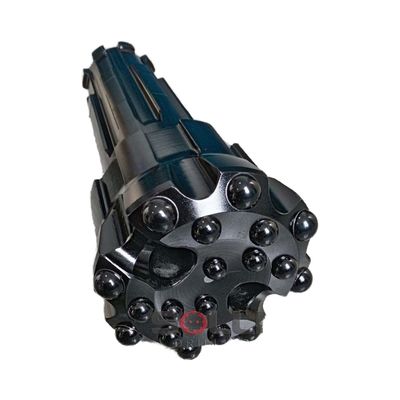

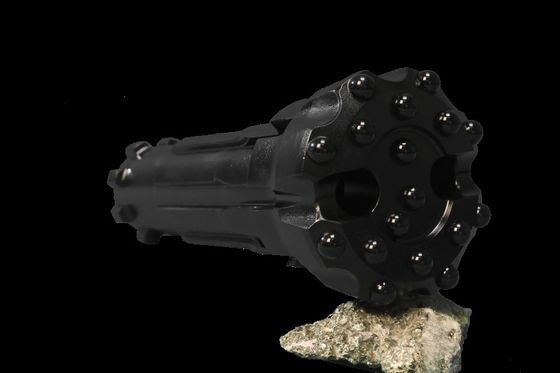

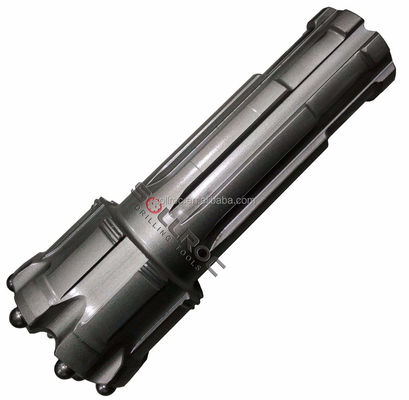

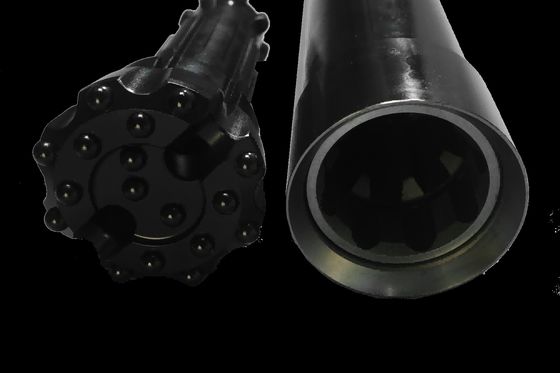

SRC545 121mm-146mm RC Drill Bit with 119-144mm Shroud Diameter and 1 Year Warranty for Well Drilling and Mining

SRC545 121mm-146mm RC Drill Bit with 119-144mm Shroud Diameter and 1 Year Warranty for Well Drilling and Mining
SRC545 121mm-146mm RC Drill Bit with 119-144mm Shroud Diameter and 1 Year Warranty for Well Drilling and Mining SRC545 121mm-146mm RC Drill Bit with 119-144mm Shroud Diameter and 1 Year Warranty for Well Drilling and Mining SRC545 121mm-146mm RC Drill Bit with 119-144mm Shroud Diameter and 1 Year Warranty for Well Drilling and Mining SRC545 121mm-146mm RC Drill Bit with 119-144mm Shroud Diameter and 1 Year Warranty for Well Drilling and Mining SRC545 121mm-146mm RC Drill Bit with 119-144mm Shroud Diameter and 1 Year Warranty for Well Drilling and Mining SRC545 121mm-146mm RC Drill Bit with 119-144mm Shroud Diameter and 1 Year Warranty for Well Drilling and Mining

Ampliación de imagen :  SRC545 121mm-146mm RC Drill Bit with 119-144mm Shroud Diameter and 1 Year Warranty for Well Drilling and Mining

Datos del producto:
Lugar de origen: Hunan, China
Nombre de la marca: SOLLROC
Pago y Envío Términos:
Cantidad de orden mínima: 1
Precio: $200
Contacto

SRC545 121mm-146mm RC Drill Bit with 119-144mm Shroud Diameter and 1 Year Warranty for Well Drilling and Mining

descripción
Peso: 12 kg Material: Acero carburizado
Tipo de procesamiento: Forja Diámetro: Muchos de ellos
Diámetro de la cubierta: 119-144 mm Forma del rostro: Plano, convexo, cóncavo, centro de caída.
Tipo de botón: Esférico, parabólico, balístico Diámetro del botón de calibre: 8*14mm, 8*16mm
Diámetro del botón central: 6*14mm+2*14mm, 6*14mm+3*14mm, 6*16mm+3*14mm Diámetro de cubierta recomendado: 119-144 mm
Bit Forma de la cabeza: Varios Configuración de botones: Personalizable
Método de perforación: Perforación de doble pared o doble tubo Flujo de aire: Por el anillo de la varilla
Colección de la muestra: A través del orificio de aire en la cabeza de la broca.
Resaltar:

121mm-146mm RC Drill Bit

,

119-144mm Shroud Diameter RC Drill Bit

,

1 Year Warranty RC Drill Bit

SRC545 133mm RC Drill Bit for RC Exploration Ore Mining & Well Drilling
Product Overview
RC drilling refers to Dual Wall or Dual Tube Drilling. RC drilling applies two rods with inner and outer tubes. Air is blown down the annulus of the rod and enters into hammer and bit. Rock formation fragments crushed by bit are collected into the inner tube via air hole on the bit head and then returned to the ground to enter the sampling system. Its hammers and bits are widely used in underground mining, quarries, hydraulic and hydro-power engineering, water well drilling, mineral exploration, anchoring hole drilling, geothermal engineering, subway excavation, and other civil engineering applications.
Features at a Glance
  • Made of quality raw material with carburized treatment for excellent wear resistance
  • Various selection options for bit head shape, button shape, and button configuration to meet customization requirements and adapt to various rock conditions
SRC545 121mm-146mm RC Drill Bit with 119-144mm Shroud Diameter and 1 Year Warranty for Well Drilling and Mining 0
SRC545 121mm-146mm RC Drill Bit with 119-144mm Shroud Diameter and 1 Year Warranty for Well Drilling and Mining 1
SRC545 121mm-146mm RC Drill Bit with 119-144mm Shroud Diameter and 1 Year Warranty for Well Drilling and Mining 2
SRC545 121mm-146mm RC Drill Bit with 119-144mm Shroud Diameter and 1 Year Warranty for Well Drilling and Mining 3
Product Specifications
Diameter Inch No.*Button Dia (mm) Recommend Shroud Dia(mm) Weight(KG)
121mm4 3/4''Guage 8*14mm,Center 6*14mm+2*14mm11910.7
124mm4 7/8''Guage 8*14mm,Center 6*14mm+2*14mm12210.9
127mm5''Guage 8*14mm,Center 6*14mm+3*14mm12511.2
130mm5 1/8''Guage 8*14mm,Center 6*14mm+3*14mm12811.5
133mm5 1/4''Guage 8*14mm,Center 6*14mm+3*14mm13111.7
135mm5 3/8''Guage 8*16mm,Center 6*16mm+3*14mm13312
137mm5 3/4''Guage 8*16mm,Center 6*16mm+3*14mm13512.3
140mm5 1/2''Guage 8*16mm,Center 6*16mm+3*14mm13812.5
143mm5 5/8''Guage 8*16mm,Center 6*16mm+3*14mm14112.8
146mm5 3/4''Guage 8*16mm,Center 6*16mm+3*14mm14413.5
SRC545 121mm-146mm RC Drill Bit with 119-144mm Shroud Diameter and 1 Year Warranty for Well Drilling and Mining 4
SRC545 121mm-146mm RC Drill Bit with 119-144mm Shroud Diameter and 1 Year Warranty for Well Drilling and Mining 5
SRC545 121mm-146mm RC Drill Bit with 119-144mm Shroud Diameter and 1 Year Warranty for Well Drilling and Mining 6
Frequently Asked Questions
Packaging:
Plywood wooden cases and pallets are used for export to protect products and avoid damage during transportation. Custom packaging is available for special requests.
Production Time:
Standard production time is 18-22 days.
Transportation:
Available by air, express, or sea according to customer requirements.
